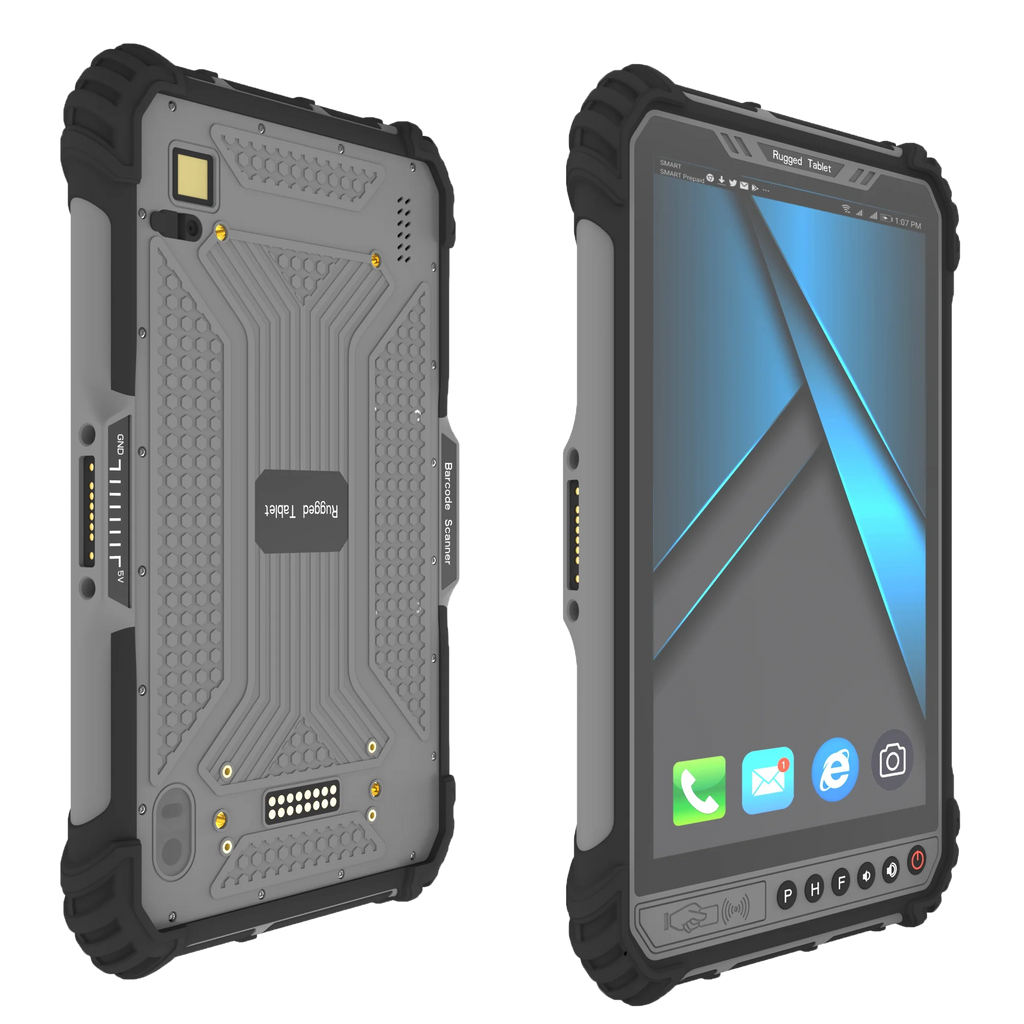

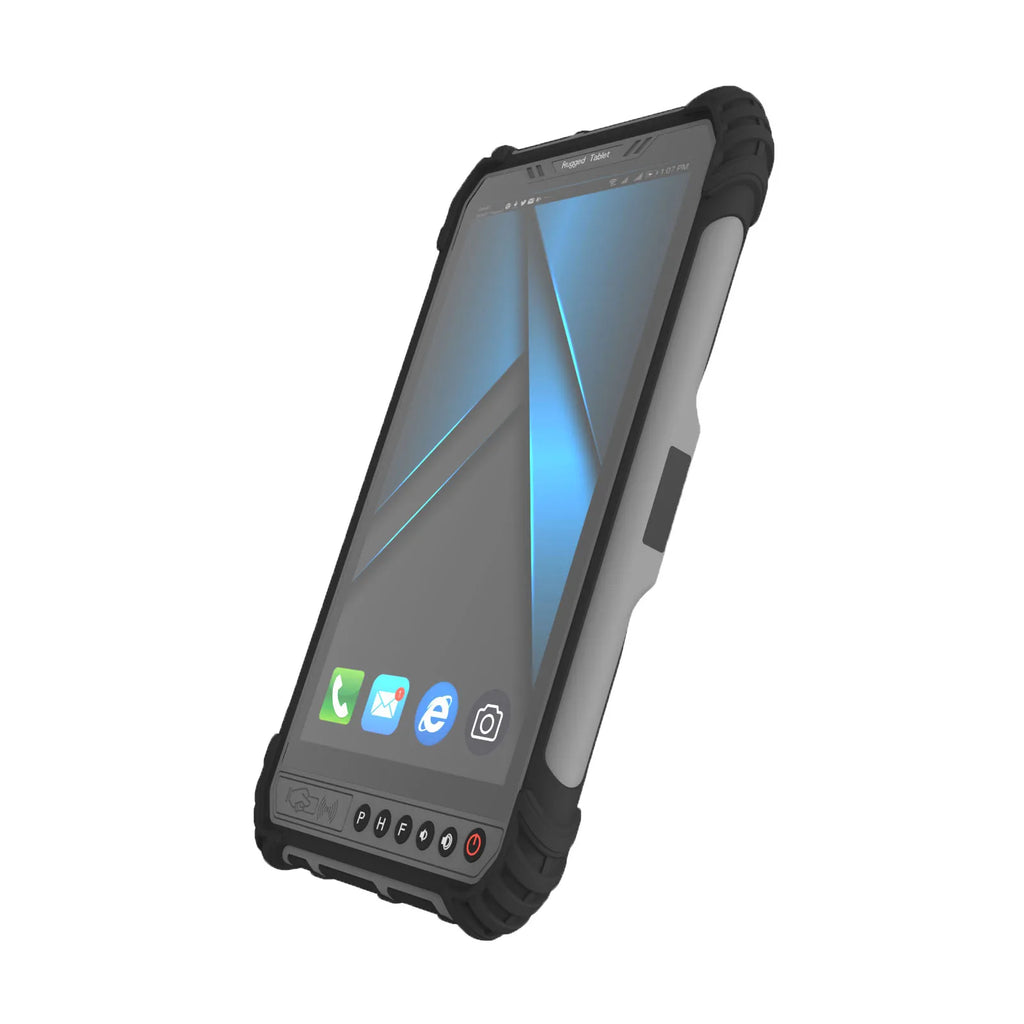

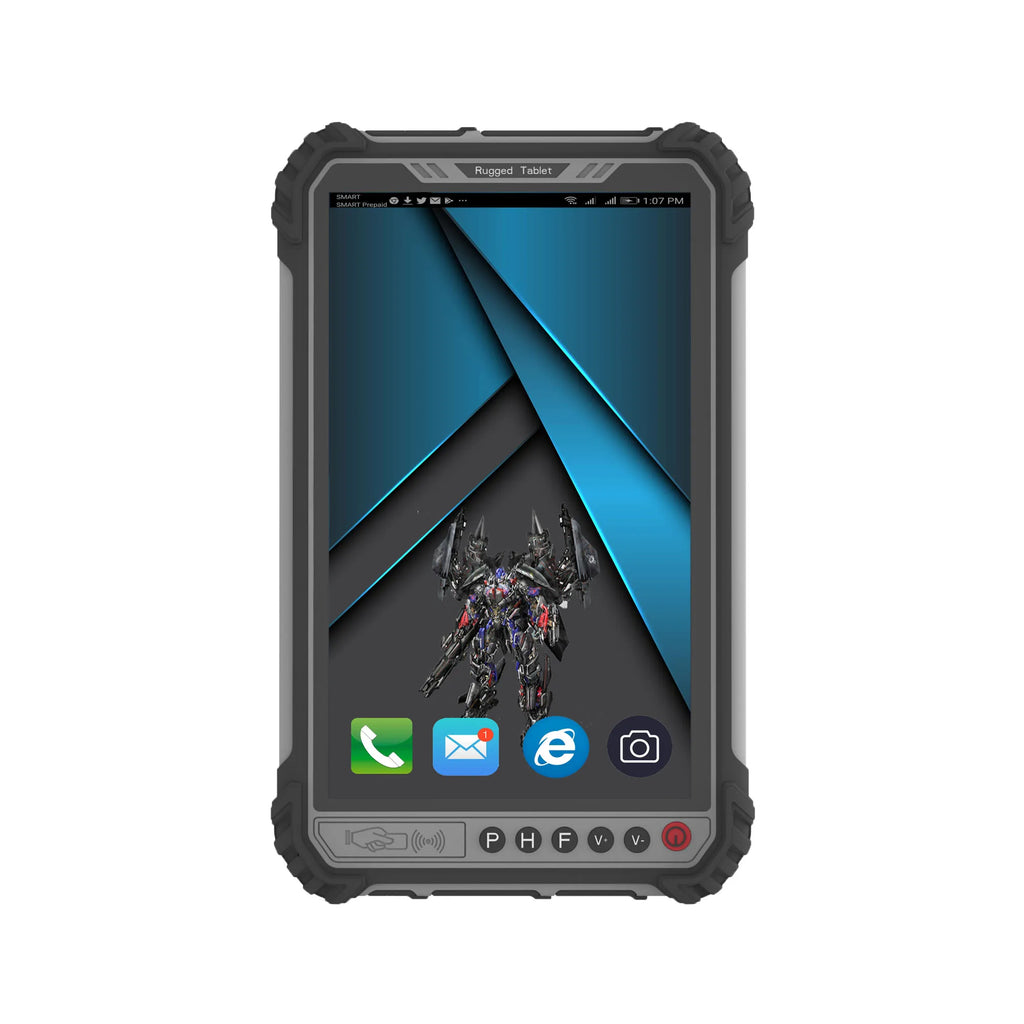

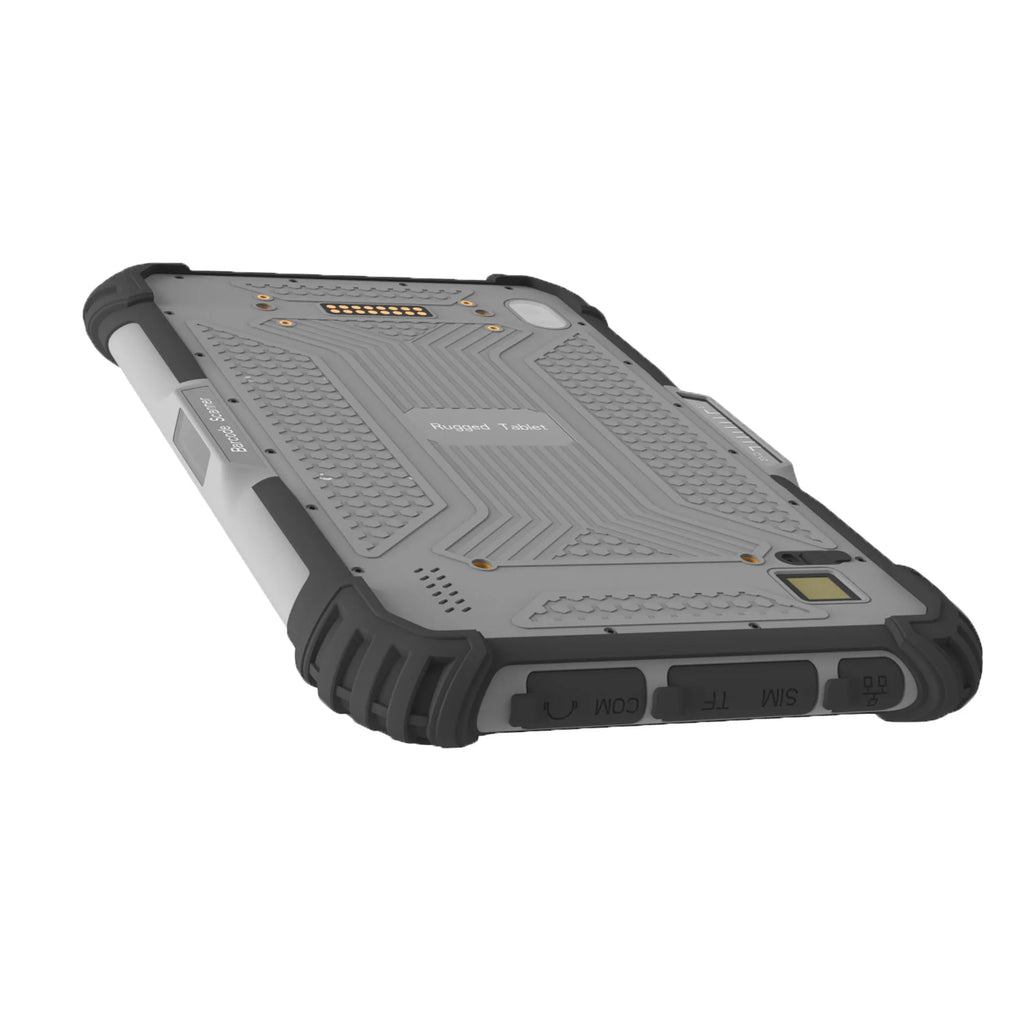

Rugged 8-Inch Android Tablet Waterproof Dustproof Drop-Resistant Handheld Industrial 4G LTE with 2D Scanner Portable Tablet

Rugged 8-Inch Android Tablet Waterproof Dustproof Drop-Resistant Handheld Industrial 4G LTE with 2D Scanner Portable Tablet

Prix promotionnel  €723,89 Prix régulier  €873,10
Default Title

SPECIFICATIONS

2D barcode scanner: N1

Battery Included: Yes

Brand Name: sincoole

CPU: MT8788

Camera: 5M/13M, flash

Certification: CE

Color: black,Black

Function: WIFI/BT/NFC

GPS: GPS, glonass

High-concerned chemical: None

LCD: 8 inch1920*1200

Model Number: ST9-A5+2D

OS: Android 11

Origin: Mainland China

Package: Yes

Plug Type: EU Plug

RAM/ROM: 4GB/64GB

Type: Embedded Computer

WWAN: 4G LTE, 3G WCDMA, GSM

proof: water proof IP65

Features:


1.Main board CPU: MT8788, android 11

2.8 Inch 1920*1200 solution, 400nits

3. RAM/ROM 4GB+64GB

4.7800mAh main battery and backup

5. 4G LTE/WIFI/GPS/BT/NFC Front optional

6.Camera: front: 5 million Pixels, rear: 13 million Pixels, flash lighting function.

7. interface ports: normal USB2.0*1, Micro USB*1, RJ45*1, bottom pogo pin*1, back pogo pin*1, DC*1 3.5*1.35*1, microphone + earphone*1, RS232* 1

8.2D barcode reader N1

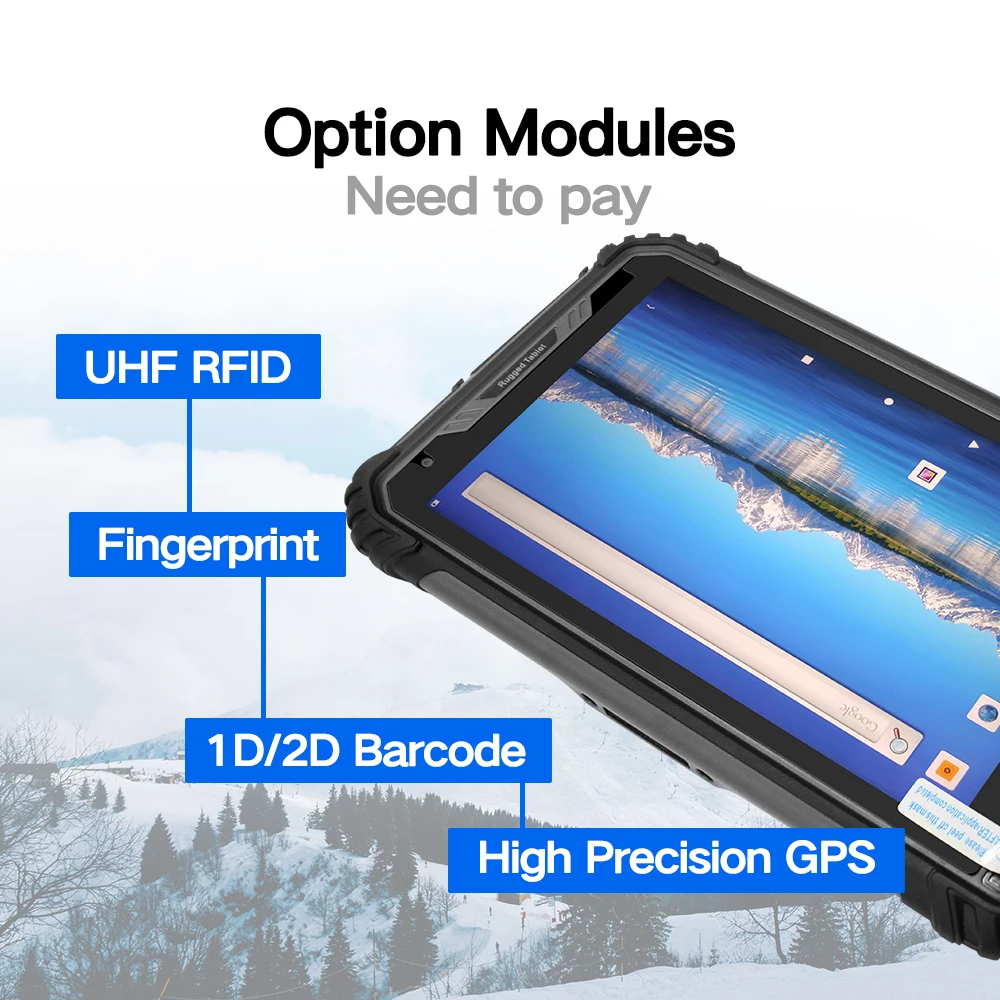

9.Optional:

UHF RFID/ High precision GPS module (please contact customer service)


ST9-A5 SPEC



ITEM

DESCRIPTION

DETAIL

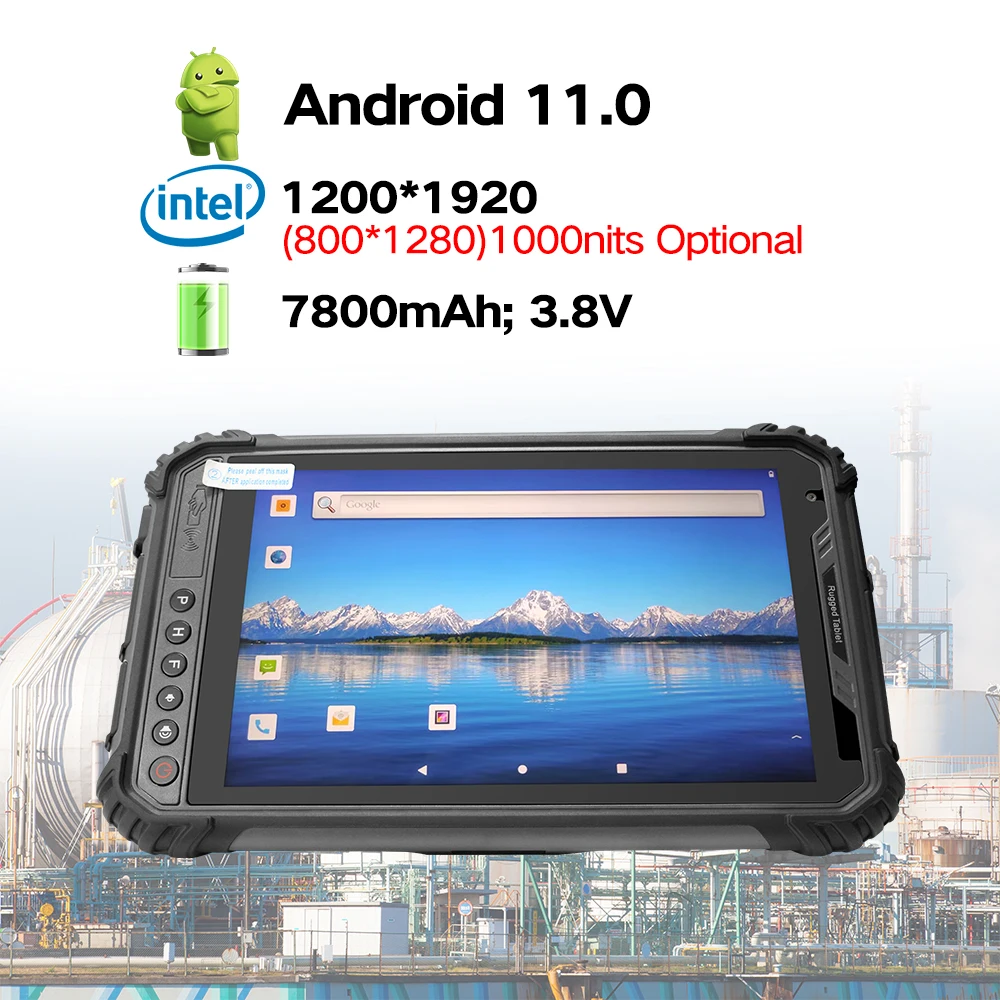

OS

Android 11.0


CPU

MTK MT8788(Octa Core, Octa Threads; 2.0GHz)

Cortex-A53×4 @2.0GHz
Cortex-A73×4 @2.0GHz

GPU

ARM Mali-G72 MP3

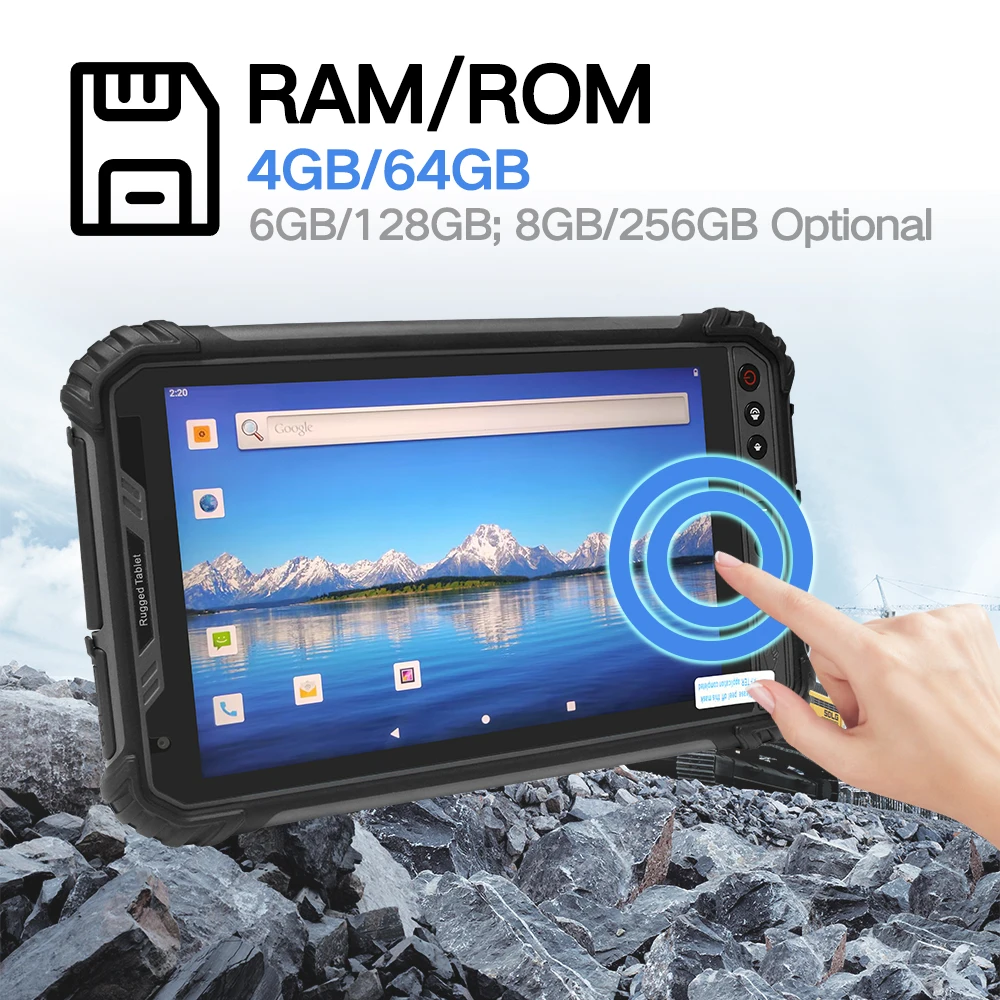

RAM/ROM

4GB/64GB

8GB/256GB Optional

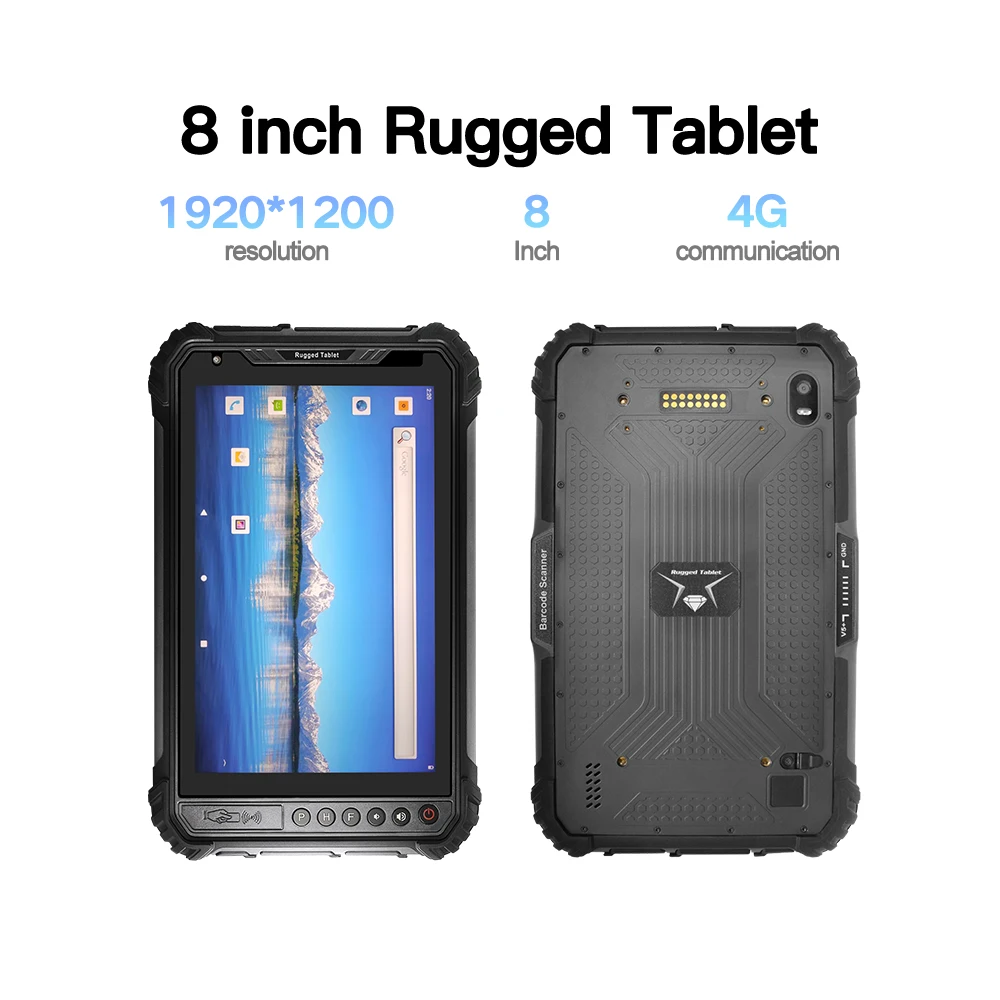

LCD

8 inch; 1200*1920; IPS

300nits (TYP)
390nits (MAX)
(800*1280)1000nits Optional

Touch Screen

10 Point Touch

Support stylus

Camera

Front: 5MP;Real: 13MP

Flash light

Power and Battery

10000mAh; 3.8V

Charging time: about 6H
Usage time: about 29H
(50% volume, 60% brightness, playing local 1080P video)

WWAN

TDD_LTE: B34/B38/B39/B40/B41/B66
FDD_LTE: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28
WCDMA: B1/B2/B4/B5/B8
CDMA2000:BC0
TD-SCDMA:B34/B39
GSM: 850/900/1800/1900


GPS

BDS, GPS, GLONASS

WiFi/Bluetooth/GPS 3-in-1 (MT6631N)

WIFI

802.11a/b/g/n/ac Wireless InternetWireless AP
( Mobile AP )2.4G, 5G

BLUETOOTH

4.2 Version

NFC

13.56 MHz, Distance: 1-3cm

ISO/IEC 14443A/B; ISO/IEC 15693

MIC

Sensitivity: -32±2d
Output Impedance: 2.2k
Ωx1


SPEAKER

8Ω1.5 Watt


Sensor

1. Light sensor
2. Magnetic sensor
3. Pressure sensor
4. G-sensor
5. Distance sensor
6. Acceleration sensor
7. Gyroscope


Size

234*144*16.8mm


Weight

630±20g


Language

Multi language

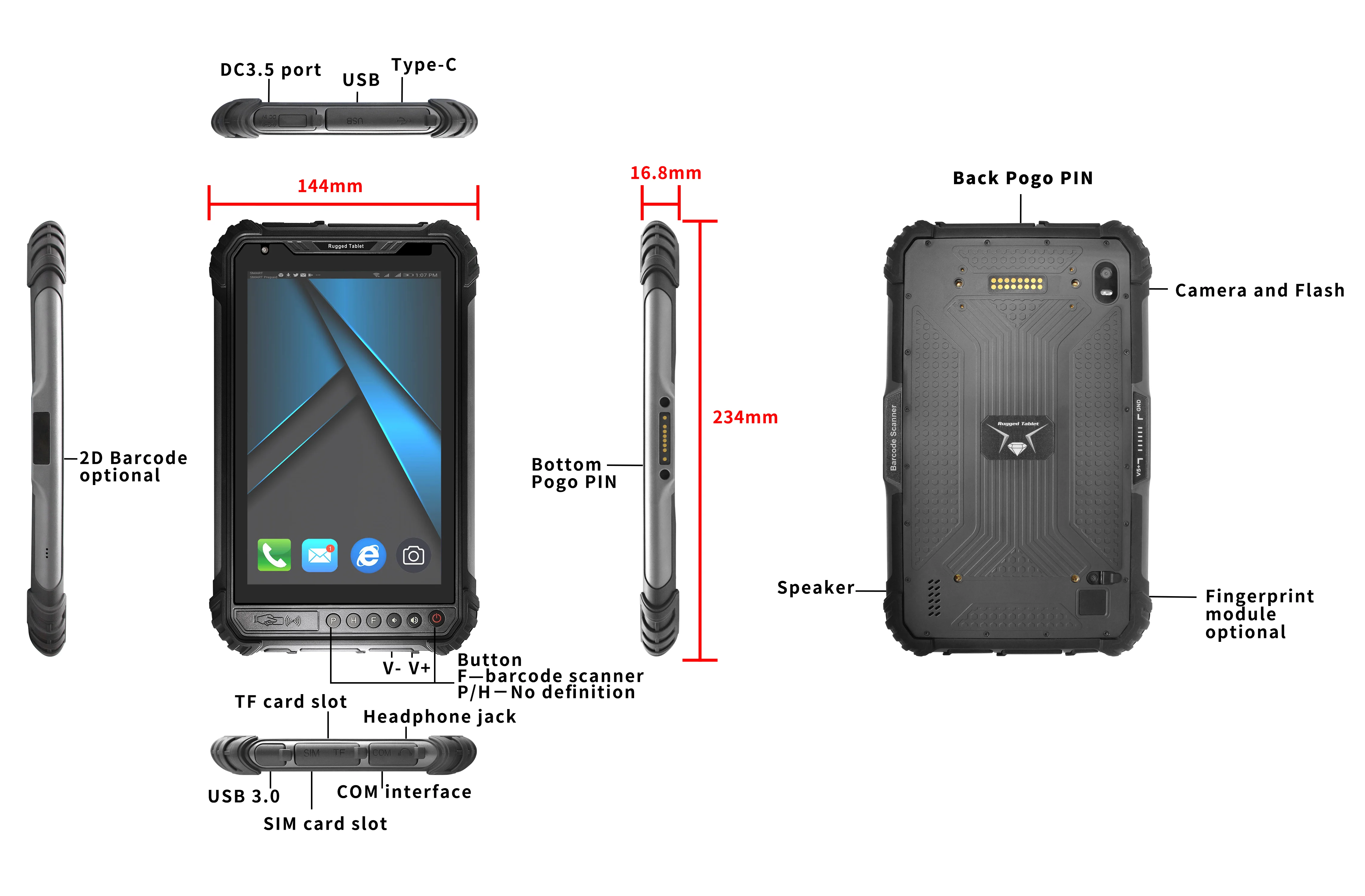

Interface
In/Out Port

1. Type-C *1; OTG
2. SIM Card Slot*1
3. TF Card Slot*1
4. Earphone*1
5. DC*1; 3.5*15mm
6. USB 2.0 *2
7. RS232*1(mini-USB)

Bottom pogopin: USB 2.0; Charging; RS232
Back pogopin: USB 2.0; RS232

Button

V+ -, Power, "F" for Barcode Scan

Customized Button: P,H
(Default No Functionality)

1D/2D Barcode

Optional

NLS-N1 Optional
M1 Optional
SE2707 Optional

UHF RFID

Optional

American standard M500 (902Mhz928Mhz)
External: card reading distance of 3-5M

European standard M500 (865MHz868MHz)
External: Card reading distance of 3-5M

Fingerprint

Optional

ZAZ-0A0 Optional
1020A Optional

High Precision GPS

Optional

UM960

Single Beidou module

Optional

ATGM332D-6N

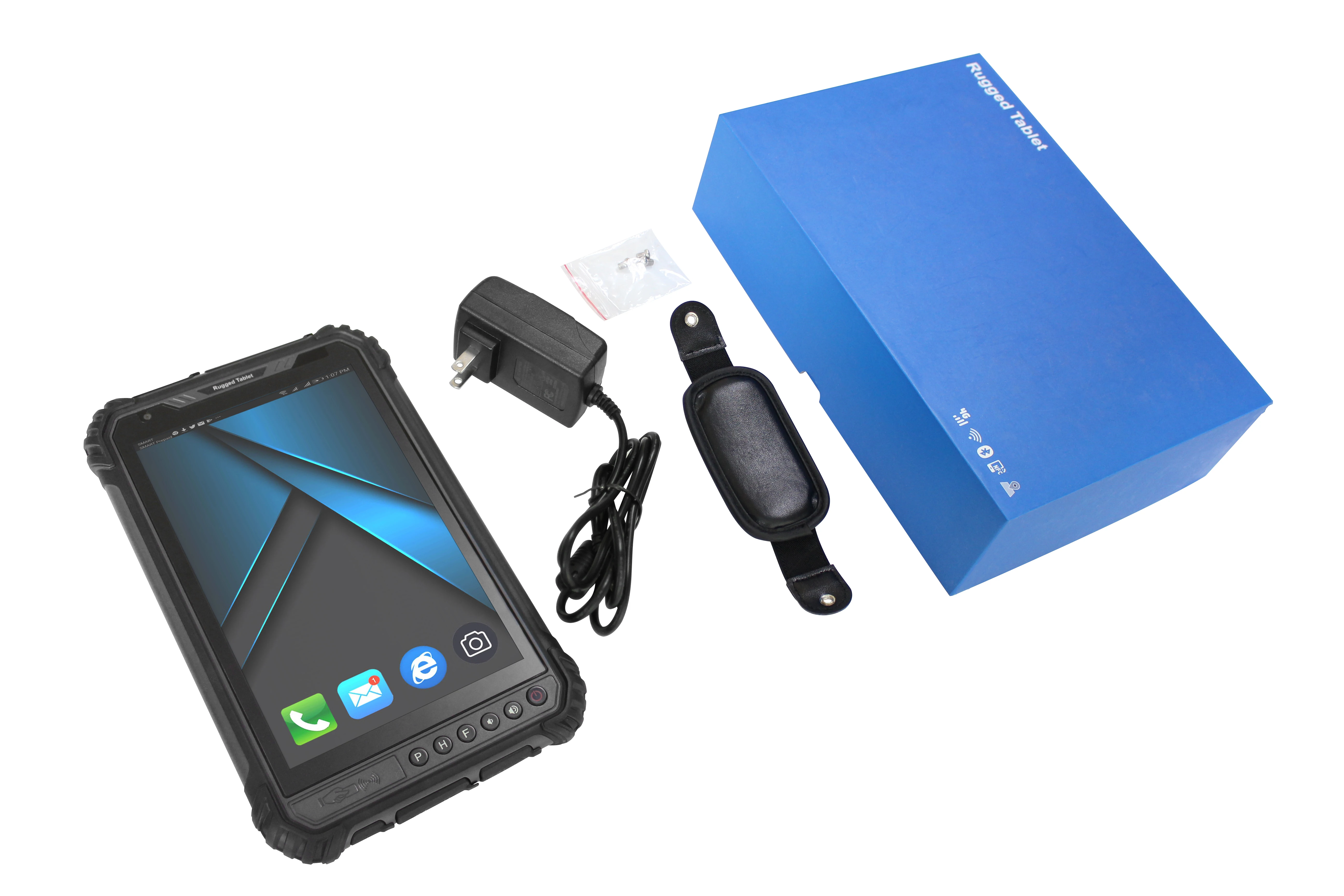

Accessories

1. Blue Box
2. DC Charger (5V 3A)
3. Wrist strap
4. Screw

Optional:
1. Docking Station
2. Car Holder
3. Car Docking

Multi-Media
(Hardware Decoding)

1. Photo Viewer:BMP, JPG, GIF, PNG
2. Video Format:
MEPG 1/2/4,H.263/H.264,
RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P)

3. Audio Format:
MP3,WMA,WAV,OGG,FLAC,ALAC,
APE,AAC,AC-3,DTS (need license)


Proof Degree

Anti-dust & WaterproofIP65
Dropping Resistance 1.2 meter


Certification

1. MIL-STD-810G
2. ISO-9001
3. CE, FCC, 3C


Temperature

Storate Temperature:-25 °C to 80 °C
Operation Temperature:-20 °C to 55°C






About Seller:


Sincoole Focus on Windows and Android Rugged tablet, always work on smart terminal development and production, focus on intel and MTK plateform development, have very perfect source and professional technology team, we work start on industrial design and mechanic design, also on schematic and layout, have diver soft and interface development experience.

With full focus on mobile computing area for over 10 years Sincoole used to help 5000+ guests choosing the right OEM/ODM Rugged Tablet and Handheld Terminal.

We develop RS232 and RJ45 port on MTK plateform base on android, and provide pogopin for all extend for the customer. the rugged smart terminal have RFID 13.56MHz, LF 125KHz, UH 900MHz on windows and android tablet. can collect the information for all project application. develop windows handheld terminal. all of these, can provide some special function for all application. we provide global 4G LTE, high resolution screen, high dropping proof and water proof for tough environment.



Our Service :

1. All items will be 100% check or tested before shipping.
2. Warranty is 12 months, if there is no Man-made problem,we will replace or repair for your freely.
3. If you need to exchange or return,please request a return address from us.Items return must contains all accessories and packing well.The buyer should pay for the return shipping fee.
4. For the product maintenance,we will send the video for your reference.If necessary,we will send technical staff to train client's repairer for free.
5. We own the best after-sale service, if any problems happened,our team will do our best to solve for customers.
6. We will provide technical assistance for the whole life.
7. Please send by FedEx/TNT/EMS or your local post when send back.

FAQ:

1. Are you manufacturer?
Yes, Sincoole Technology is professional industrial rugged tablet and handheld PDA terminal manufacturer and factory.
From industrial design, mainboard design, products reliability testing, and production. We control the quality in total process. So you don’t need worry.

2. Would you provide SDK for me ?
Yes, we offer free SDK if you order sample.
3. What warranty for the products?
According to our warranty policy, we will provide 12 months warranty time from the shipment date for our products (Excluded the consumable parts).
4. What is the mimimum order?
We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you.
5. Can we get the free sample?
Sorry, generally we would not provide the free sample, If the cusomer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
When they place the mass order ,we can return the sample cost to the customers.
6. Do you accept Paypal?
Yes, we accept paypal, Besides ,we accept Western Union ,T/T.L/C,Secure payment (Escrow Service from Alibaba) and so on
7. What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment, For quantity, the leading time will be 1-4 weeks depends on exact quantity.
8. Which way to deliver the goods?
By Express: DHL UPS TNT FEDEX or Aramex EMS E-packing.
By Sea: Inform us the Sea Port to check which ship line.
By air: Inform us the Airport to check which flight.
Or pick up by the customers.
9. What the after sale service?
a. Our all products will provide 12 months warranty.
b. Enough stock spare parts for guarantee.
c. Professional enginerrs provide 7*24 online service.
